BFX displays offered with bonded cover glass with anti-reflection
Chassis Plans’ new BFX displays rugged, military grade, high performance, 2U rackmount LCD panel displays offer two 24″ TFT LCD displays with per panel resolution of 1920×1200. 1,000:1 contrast ratio, and 4ms response time.
The 37lb BFX1-24 is ideal for deployable transit case integration where both image quality and display toughness are required. Both displays in the BFX are offered with bonded cover glass with anti-reflection and EMI surface treatments for MIL-STD-461G certification. The BFX1-241 model is optimized for reliable operation in extreme outdoor and challenging environments and can operate in widely varied temperatures (0 to 50°C / -25 to 60°C).

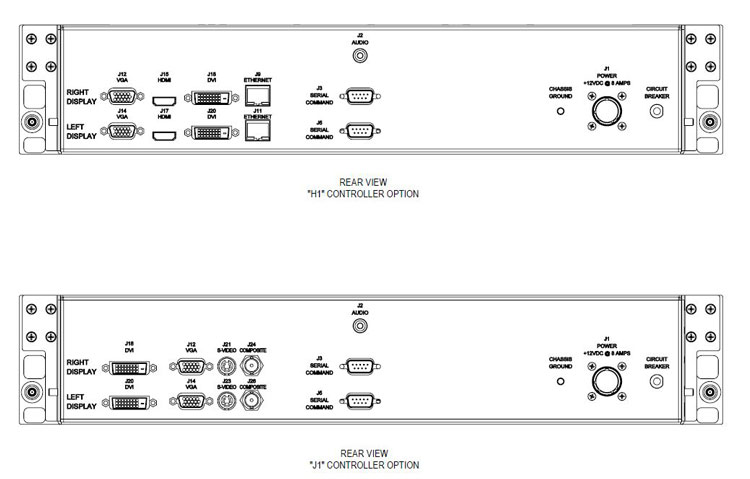

The BFX displays support a wide range of video resolutions – from 640×480 all the way up to 1920×1200; video inputs include VGA, DVI Dual Link, HDMI, DVI-D and NTSC/PAL/SECAM video as well as Composite Video and S-Video.
Other functions and options include up to ten bit per color, 16.7 million colors, On Screen Display (OSD) menu, Image Scaling: Up scaling to fit input to panel resolution. Image Control features include Auto configuration, Brightness, Contrast, Clock, Phase, Color temperature, Image position, Saturation, Hue, Gamma.
Additional Features: System Information, OSD position, scaling to fill screen and fill to aspect ratio, OSD timeout, factory reset, OSD menu transparency, Horizontal & Vertical image inversion, Picture in Picture, Picture by Picture variable positions. RS-232 or Ethernet command and control.
In addition to its outstanding video performance, the BFX displays include two integrated, water resistant speakers. Chassis Plans’ BFX displays can operate on a range of power sources – including universal input 85 to 245VAC MIL-STD-1275/704 28 VDC, with options for 12VDC and 400Hz AC input as well.
