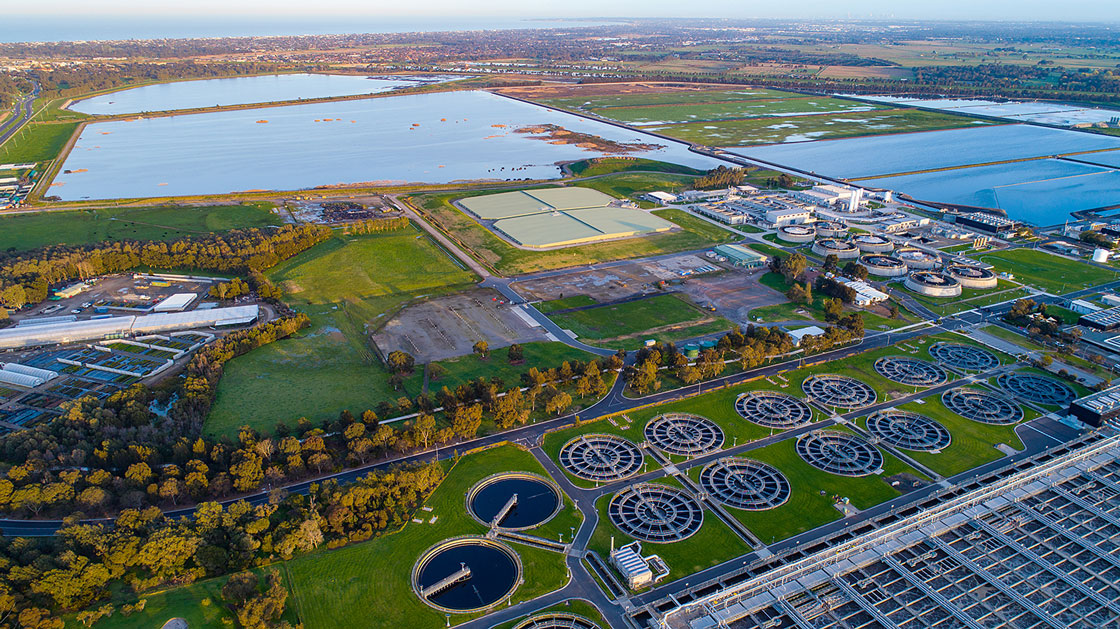

Credit: Mitsubishi Electric
Since incomes for operating companies and government authorities in the water industry are either fixed or hard to change, reducing costs is a strong driving force behind any investment. At the IFAT exhibition 2018, Mitsubishi Electric is presenting its life-cycle management solutions that can support overall efficiency by reducing management complexity.
Kilometers of pipes used to be the only thing connecting multiple control valves, pumping stations and processing facilities. This poses a big challenge when operators need to harmonize system pressure to avoid leakage, and make sure each station is working as energy efficiently as possible. Rising energy prices and the increasing cost of maintenance work constantly force water and waste water companies to find new solutions that do not drain financial, personnel and material resources. An operator must be able to see an asset whether that is a pump system, a distribution network, or an entire processing facility to benchmark performance and then start to make measurable improvements.
Scalable water management systems
Achieving effective control over water supply and distribution networks can be achieved by making use of a data-based approach: Mitsubishi Electric will be illustrating this with its main exhibit Aquatoria, a software solution that can optimize the energy usage of a complete water distribution network. The network can then be visualized, allowing every asset to be precisely monitored and controlled. By making use of software functions based on artificial intelligence, multiple assets can be optimized and managed simultaneously which eliminates the instance of leakage due to pressure fluctuations. Maintenance callouts and costs are reduced by lowering the stress on assets and protects them from damage.
Many applications may require a process management system with comprehensive visualization capabilities. The PMSX pro Decentralised Control System (DCS) enables control via Mitsubishi Electric PLC platforms and combines this with equally advanced visualization capabilities. This is ideal for upgrading control systems, for example at water management and treatment facilities. New options such as Topological Line Coloring (TLC) allow users to create system plan diagrams with dynamic on-screen functions which are easy to understand and convey visual information quickly. Operators have precise control with a clear process overview. This provides live status for fast maintenance and management decisions, increased plant up-time and more efficient operations.
Smart inverters increase OEE
Capital expenditure on automation equipment can also be reduced by using the FR-F800 series of inverters with integrated Ethernet which are used to improve performance of pumps or motors by utilizing built in PLC software. Having PLC functionality on-board means the inverter can control and co-ordinate a complete process without having to purchase an additional physical PLC controller. Direct Human Machine Interface (HMI) compatibility and flexible networking options add to the system-building potential. The FR-F800 inverter also offers energy saving features which combined with the system capability delivers an all-round package of process optimization and cost reduction.
Predictive maintenance to reduce unscheduled downtime
Visualizing an entire plant in real time is very effective for controlling costs but seeing into the future is even better. Using predictive maintenance techniques, operators responsible for improving the availability of equipment such as pumps and other rotating equipment can minimize unscheduled downtime. Reducing downtime helps control costs and ensure customer service targets for water availability are met. The Smart Condition Monitoring (SCM) kits from Mitsubishi Electric provide an integrated approach for monitoring the condition of individual assets that enables service requirements to be accurately predicted and made as necessary. This means no equipment is over-serviced and any emergency breakdowns are avoided, and maintenance is more easily planned.
Further to the above, visitors to the booth can explore several case studies showing how these and other solutions have been proven in customer applications – visit hall C1, stand 440.
