New 271-310 MHZ VCO from Crystek

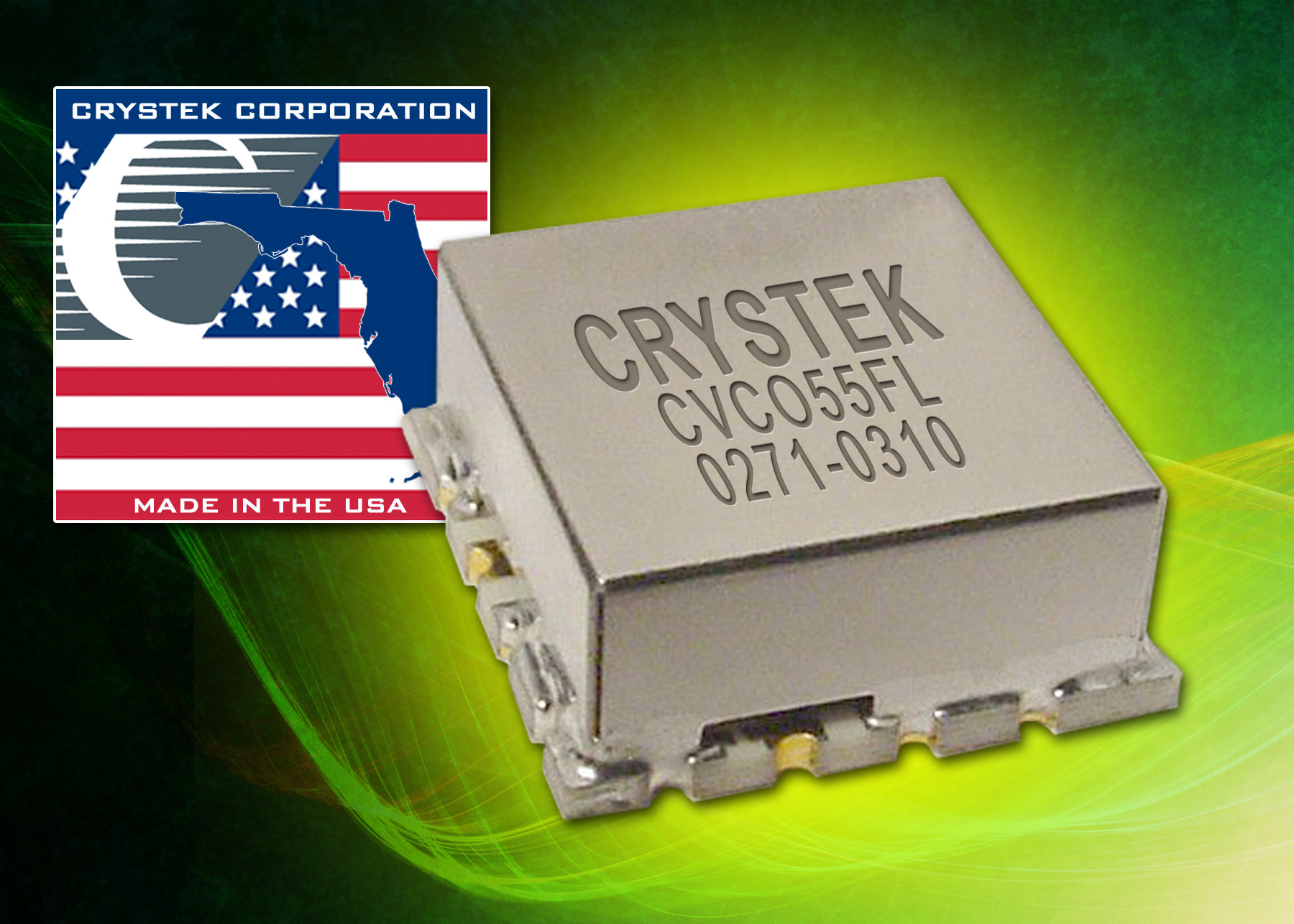

Crystek’s CVCO55FL-0271-0310 VCO (Voltage Controlled Oscillator) operates from 271 MHz to 310 MHz with a control voltage range of 0.5 V~4.5 V. This VCO features a typical phase noise of -114 dBc/Hz @ 10 KHz offset and has excellent linearity. Output power is typically +0 dBm.

Engineered and manufactured in the USA, the model CVCO55FL-0271-0310 is packaged in the industry-standard 0.5-in. x 0.5-in. SMD package. Input voltage is typ. 5V, with a max. current consumption of 5 mA. Pulling and Pushing are minimized to 2.0 MHz and 1.0 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.

The CVCO55FL-0271-0310 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
