New Technique Speeds NanoMRI Imaging
Researchers from ETH Zurich in Switzerland have developed a measurement technique that overcomes the limitations of nanoMRI scanning.
NanoMRI is a scanning technique that produces nondestructive, high-resolution 3-D images of nanoscale objects. This type of scanning offers an in-depth look at the shape and function of biological materials such as viruses and cells in much the same way as clinical MRI today enables investigation of whole tissues in the human body.
The only problem with the technology is that producing images with near-atomic resolution is difficult and time-consuming. A single nanoMRI scan can take weeks to complete.

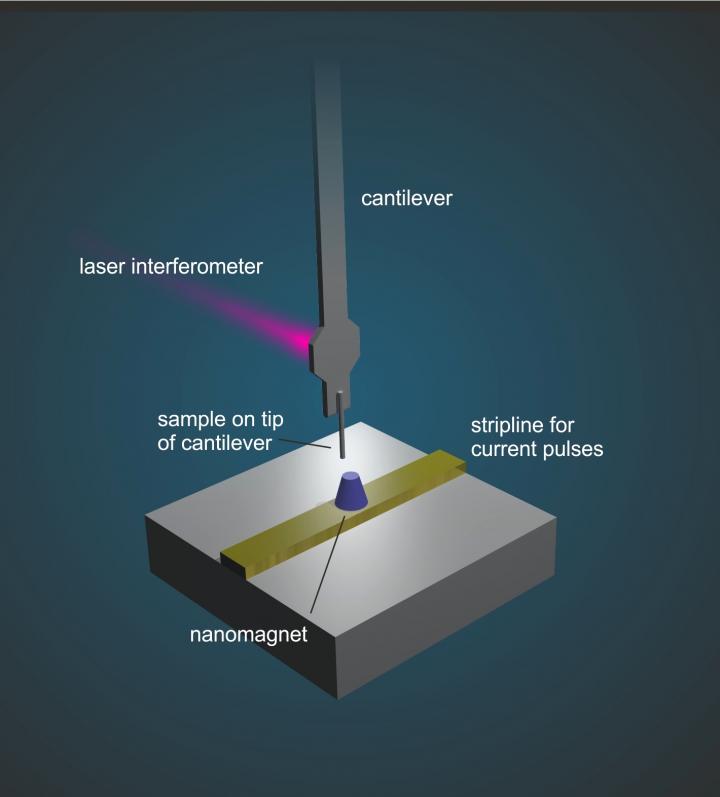

![Basic principles of magnetic resonance force microscopy.](https://www.eedesignit.com/wp-content/uploads/2015/05/Magnetic_Resonance_Force_Microscopy-271x300.jpg)
The ETH Zurich team developed a way for information that would normally be measured sequentially, one bit after another, to now be measured at the same time with a single detector.
“As a loose analogy, think of how your eyes register green, red, and blue information at the same time using different receptors – you’re measuring different colors in parallel,” said Alexander Eichler, a postdoctoral researcher and teaching assistant at ETH Zurich.
Parallel measurement is also referred to as “multiplexing.” After the scan, the researchers need to be able to distinguish where each bit of information belongs in the final picture. For this reason, “different bits of information are encoded in the detector using different phases,” he explained. “The term ‘phase’ refers to a lag in a periodic signal. The phase can be used to differentiate between periodic signals in a way similar to how color is used to differentiate between light signals in the eye.”
Magnetic resonance imaging makes use of the fact that certain atoms – such as 1H, 13C, or 19F – have nuclei that act like tiny spinning magnets. When these atoms are brought into a magnetic field, they rotate around the field axis in much the same way a spinning top rotates around its vertical axis when it isn’t perfectly balanced.
“This rotation is called ‘precession,’ and it happens at a very precise frequency, known as the ‘Larmor frequency,’ which depends on the field strength and type of atom,” said Eichler.
In a nonhomogeneous field, atoms at different locations have different Larmor frequencies. The atom’s location “can be evaluated from the frequency at which it precesses, and an image of the location of all atoms can be composed,” he added. “When you look at a clinical MRI picture, you see bright pixels where the density of atoms — typically 1H — is high, and dark pixels where the density is low.”
The magnetic strength of a single atom is vanishingly small. “Clinical MRI is only possible because a single 3-D pixel – a “voxel” – contains about 1018 atoms,” Eichler pointed out. “With nanoMRI, we want to detect voxels with only a thousand atoms or less, meaning that we need a sensitivity at least a quadrillion [10^15, or a million billion] times better.”
To achieve this, various strategies have been developed. The research team working with Professor Degen demonstrated phase multiplexing with a particular nanoMRI technique called “magnetic resonance force microscopy” (MRFM), in which the atomic nuclei experience a tiny magnetic force that’s transferred to a cantilever acting as a mechanical detector. In response to the magnetic force, the cantilever vibrates and then, in turn, an image can be assembled from the measured vibration.
“Our research overcomes one of the major obstacles toward practical high-resolution nanoMRI, namely the forbidding time scales required for sequential measurements,” Eichler said. “It brings us closer to the commercial implementation of nanoMRI.”
In other words, the team’s work greatly accelerates the speed of nanoMRI measurements. By demonstrating parallel measurements of six data points, they’ve shown that a normal scan of two weeks can now be compressed to within two days.
“Acceleration is limited by technical issues such as the speed of spin reversal and the stability of phase-sensitive detection,” Eichler noted. “But, in principle, phase multiplexing might allow compression rates of ten or more. With commercial applications in mind, this time gain is crucial because it makes a huge difference to a pharmaceutical company if a virus can be characterized within three days rather than a month.”
What’s next?
The ETH Zurich team is turning the focus to nanoMRI measurements of biological systems. In particular they would like to demonstrate a spatial resolution of better than 1 nanometer.
“Taking into account that the number of atoms in a voxel scales with the cube of the length, this will require an improvement in sensitivity of more than 100 relative to prior work – the current record resolution is about 5 nanometers,” said Eichler.
The preparation of biological objects for low-temperature, high-vacuum measurements is a particular challenge because an ordinary cell, if transferred into vacuum, will simply burst from the pressure imbalance.
“When the cell is cooled below the freezing point of water, the liquid inside it may crystallize and destroy the cell membrane,” he added.
They are currently developing strategies to avoid these issues so that cells or viruses can be transferred without being damaged.
