New wearable RFID scanner is intended for healthcare and retail solutions

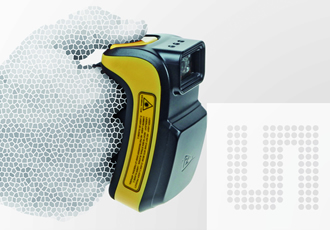

ams has just released the 1153, a rugged, wearable RFID scanner made by Technology Solutions Limited that uses the highly-integrated, low-power AS3993 reader IC. The small, light 1153 Bluetooth Wearable RAIN (UHF) RFID Reader, which measures 10.2×5.5×5.6cm and weighs just 157g, has a palm strap so it can easily be worn on the back of the user’s hand, as well as an anchor point for attachment to a tablet computer.
The scanner is meant for use by retail, healthcare, document-tracking, laundry and delivery staff, the 1153 reader from Technology Solutions Limited offers long battery run-time, ideal for applications in which it is away from a charging point for long periods.
The primary design constraints facing the 1153’s development team were performance, size and power consumption. The reader IC that Technology Solutions Limited chose, the AS3993 from ams, is housed in a compact 7mm2 QFN48 package. It operates from a supply voltage as low as 2.7V, compatible with the 1,130mAh lithium-polymer battery in the 1153 reader. In normal mode, the AS3993 draws an operating current of just 65mA.
The designers at Technology Solutions Limited also benefited from the high level of integration in the AS3993 as they worked to accommodate a complete RFID reader in a wearable form factor. Combining an RF front end with RFID protocol-handling circuitry, the AS3993 implements a complete EPC Class 1 Gen2 RFID system with only the addition of a simple external 8-bit MCU.
In the 1153, the AS3993 reads from and writes to ISO18000-6C UHF transponders. The capabilities of the AS3993 also include support for ISO18000-6A/B in Transparent mode.
Featuring selectable Receive sensitivity of up to -90dBm, and integrating a power amplifier with a Transmit (output) power of 20dBm, the AS3993 gives the 1153 a very large link budget for robust performance even in challenging operating conditions. The 1153 is specified with a nominal Read range of up to 2m and a Write range of up to 1m.
The 1153 RFID reader is available now in versions for Europe, North America and Australia, and with or without a 2D barcode imager.
‘We chose the AS3993 because it provided the best possible combination of reader performance with low power consumption for an ultra-compact, wearable UHF RFID reader,’ said Dr David Evans, managing director of Technology Solutions Limited. ‘Our requirement for efficient Read performance with very low power consumption made it obvious that we should choose the ams AS3993.’
‘The goal of ams when developing the AS3993 RAIN RFID reader IC was to offer OEMs the best performance and power consumption in the smallest package. The device has found an ideal application in the 1153 reader, which is an outstandingly small and light design offering remarkably long battery run-time,’ said Johnsy Varghese, marketing manager of the Wireless Connectivity division at ams AG.
The AS3993 is available now in production volume. Unit pricing is $35 in order quantities of 1,000.
